Complete din rail mount 2 Pole A-Type RCCB, with a trip rate of 30mA and automatic cut off on current leakage.
Available in 40 & 63Amp
Split Quantity: 1
Carton Quantity: 100
Code:RCD/DC2/40, RCD/DC2/63
Poles Number: 2
Applicable to terminal and pin/fork type busbar connection.
Equipped with finger protected connection terminals.
Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.
Material: Fire resistant plastic parts
Application: Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity Independent of power supply and line voltage, and free from external interference, voltage fluctuation.

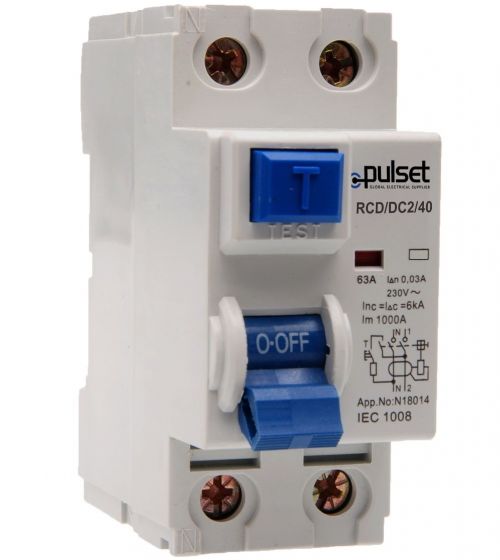

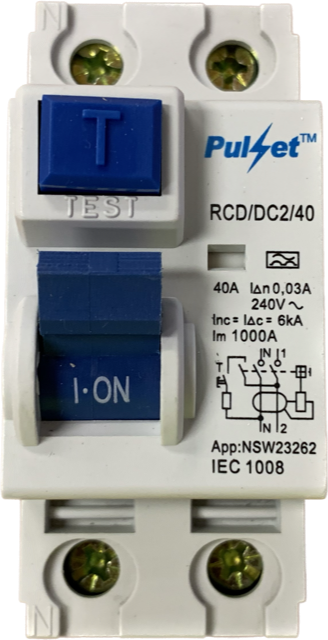

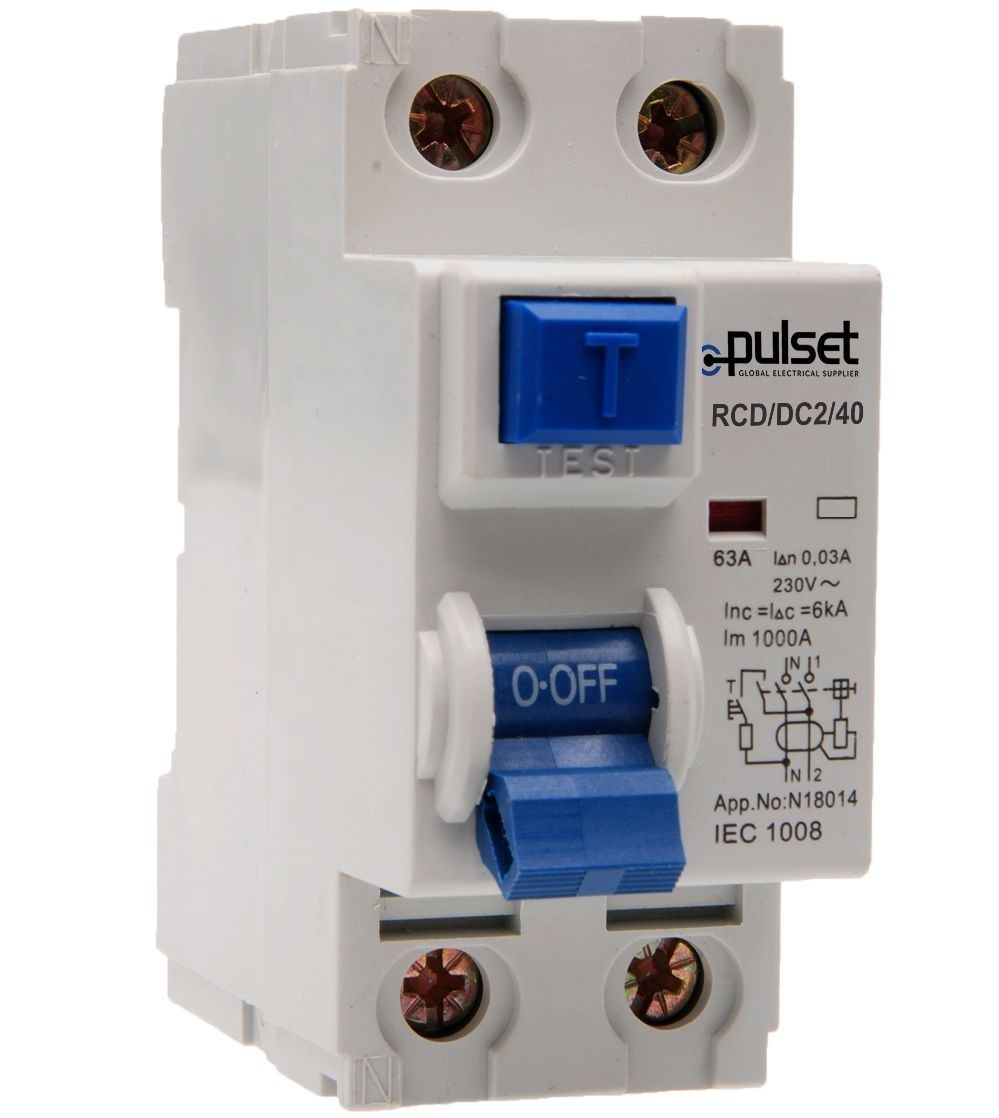

40Amp A-Type 2 Pole RCD 30mA

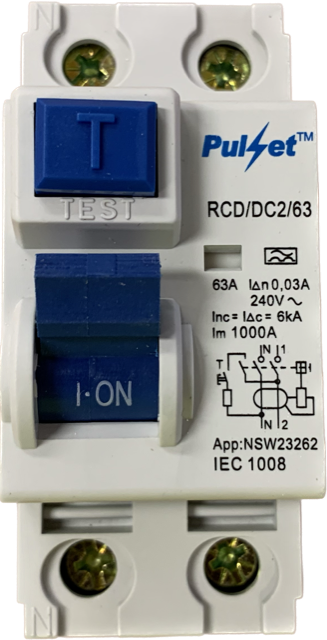

63Amp A-Type 2 Pole RCD 30mA
